Balancing valves

Balancing valves

MULTI-THERM automatic circulation balancing valve, FPT, 122 °F - 149 °F

figure 154 02

control range 122 °F - 149 °F
for hydraulic balancing of hot water return systems (PWH-C), supports thermal disinfection
wetted metal parts made from dezincification-free, corrosion-resistant and lead-free gunmetal, resistant against aggressive water
isolating unit with temperature sensor pocket

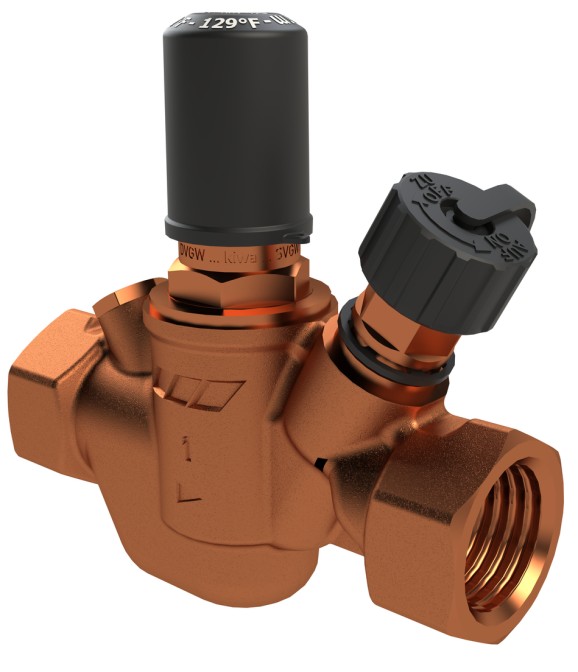

MULTI-THERM automatic circulation balancing valve, FPT, 111 °F - 129 °F

figure 154 04

control range 111 °F - 129 °F
for hydraulic balancing of hot water return systems (PWH-C), supports thermal disinfection
wetted metal parts made from dezincification-free, corrosion-resistant and lead-free gunmetal, resistant against aggressive water
isolating unit with temperature sensor pocket

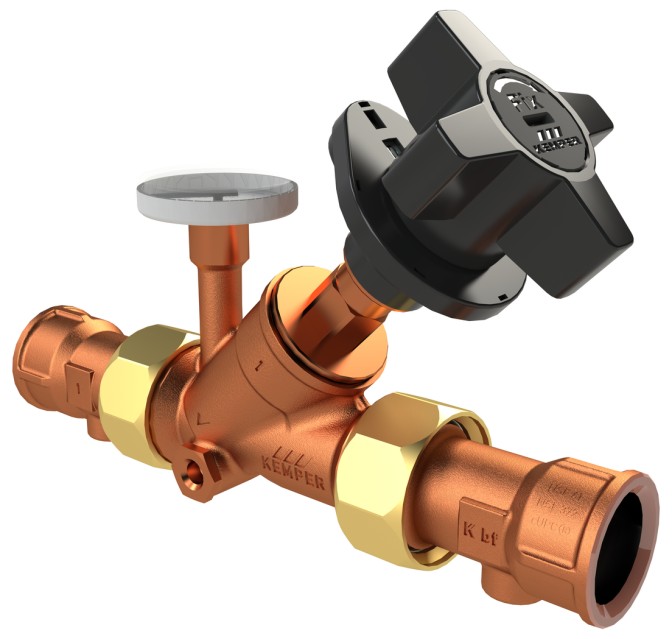

MULTI-FIX-PLUS static balancing valve

figure 155 6G

for hydraulic balancing of hot water return systems (PWH-C)
wetted metal parts made from dezincification-free, corrosion-resistant and lead-free gunmetal, resistant against aggressive water
PTFE seat gasket

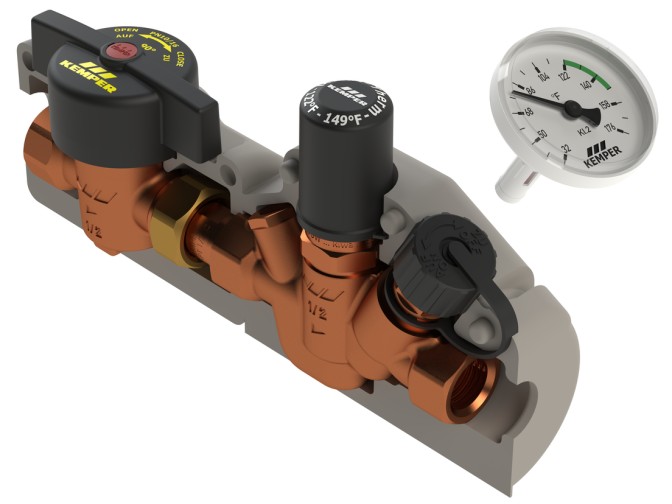

MULTI-THERM Assembly, 122°F-149°F

figure 154 12

for the hydraulic balancing of hot water circulation systems (PWH-C)
consisting of a MULTI-THERM thermostatic circulation balancing valve, an anti-pollutioncheck valve, and a stop valve
wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water

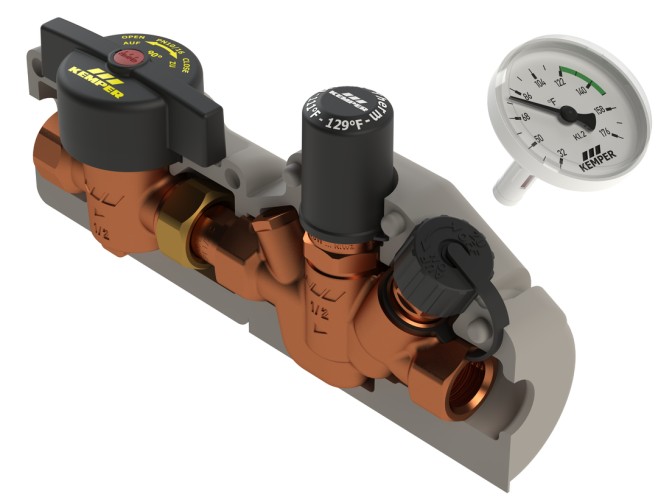

MULTI-THERM Assembly, 111°F-129°F

figure 154 14

for the hydraulic balancing of hot water circulation systems (PWH-C)
consisting of a MULTI-THERM thermostatic circulation balancing valve, an anti-pollutioncheck valve, and a stop valve
wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water

Back to Product Overview

Hydraulically Balanced Hot Water Return Systems

Balancing Valves

Hot Water delay times will be reduced and user's comfort will be maximized when a hot water return installation is hydraulically balanced with KEMPER thermal and static balancing valves. Kemper balancing valves help to maintain temperature in hot water installations thereby contributing to reduced bacteria growth. The Multi-Fix Plus is a static valve that can be preset to a calculated Cv-value and incorporates a balancing and isolating function. The Multi-Therm is a thermal balancing valve that can be preset to a desired temperature. The valve's thermal mechanism reacts to water temperature to consistantly maintain temperature at the preset value. The Multi-Therm also includes an isolating function.
