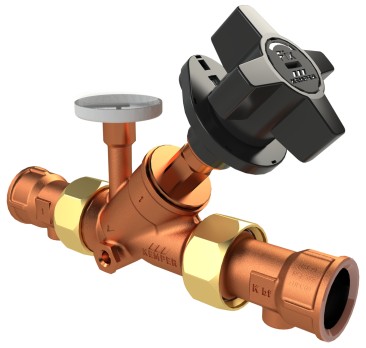

MULTI-FIX-PLUS static balancing valve
figure 155 6G
- for hydraulic balancing of hot water return systems (PWH-C)
- wetted metal parts made from dezincification-free, corrosion-resistant and lead-free gunmetal, resistant against aggressive water
- PTFE seat gasket
Product Features
- for hydraulic balancing of hot water return systems (PWH-C)
- wetted metal parts made from dezincification-free, corrosion-resistant and lead-free gunmetal, resistant against aggressive water
- PTFE seat gasket
- maintenance-free spindle gasket with self-lubricating EPDM lip gasket
- female pipe thread
- with plugged drain port
- incl. thermometer
- with pocket for temperature sensor Pt1000
- free from dead spots
- keeps throttle pre-setting when vale is closed and opened
- with indicator for pre-setting
Standards & approvals
- NSF/ANSI 61 & NSF/ANSI 372
- IAPMO/IGC 302
Technical data

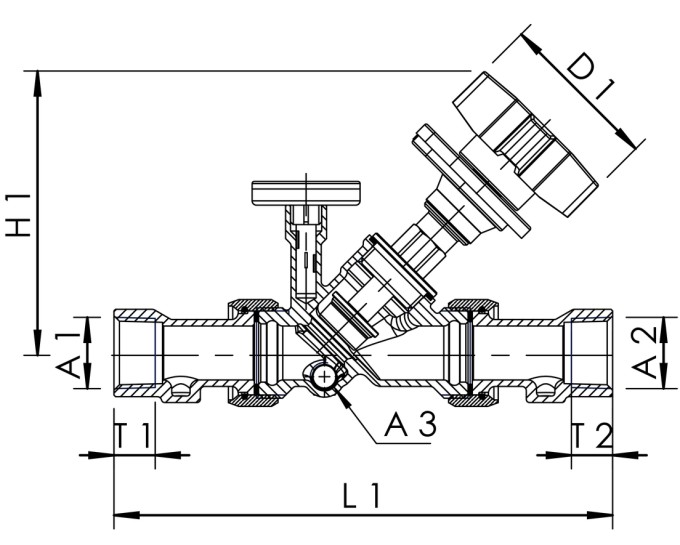

| Part no. | DN | A1 | A2 | A3 | D1 (mm) |
D1 (in.) |
H1 (mm) |
H1 (in.) |
L1 (mm) |
L1 (in.) |
T1 (mm) |
T1 (in.) |
T2 (mm) |
T2 (in.) |
cv (m³/h) |
cv (GPM) |
Weight (kg) |
Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1556G01500 | 15 | FPT 1/2 | FPT 1/2 | G 1/4 | 75.5 | 3.0 | 116 | 4.6 | 182.4 | 2.8 | 15 | 0.6 | 15 | 0.6 | 4.48 | 5.2 | 0.56 | 0.26 |
