Flow-Splitters

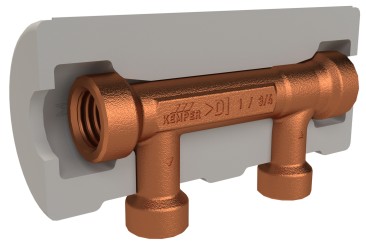

KHS Flow-Splitter set - dynamic, FPT

figure 651 20

  • prevents stagnation in ring pipe installations through forced flow during downstream withdrawals, can be used in cold drinking water (PWC) and hot drinking water (PWH)
  • KHS Flow-Splitter - dynamic, according to the Venturi principle, including dynamic cartridge, flow and return branch for connection of outlets / plumbing units
  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
Downloads
/media/crossbase/fot_pro_per_65120_sall_ainfs_v1_lj_366x382.jpg
/media/crossbase/zei_pro_sch_65120_sall_ainfs_v1_lj_366x382.jpg
Site navigation

Product Features

  • prevents stagnation in ring pipe installations through forced flow during downstream withdrawals, can be used in cold drinking water (PWC) and hot drinking water (PWH)
  • KHS Flow-Splitter - dynamic, according to the Venturi principle, including dynamic cartridge, flow and return branch for connection of outlets / plumbing units
  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
  • KHS Flow-Splitter pass with female thread
  • plumbing unit feed pipe with female thread
  • plumbing unit return pipe with female thread
  • maintenance free
  • free from dead spots
  • incl. insulation shells
  • use only KHS isolating valves in the loop to maintain proper function of the KHS Flow-Splitter

Standards & approvals

  • NSF/ANSI 61 & NSF/ANSI 372
  • IAPMO/IGC 302

Technical data

  • pressure rating PN 16
  • max. operating temperature 194 °F
/media/crossbase/zei_pro_sch_65120_sall_ainfs_v1_lj_404xy.jpg
/media/crossbase/zei_pro_sch_65120_sall_ainfs_v1_lj_680xy.jpg

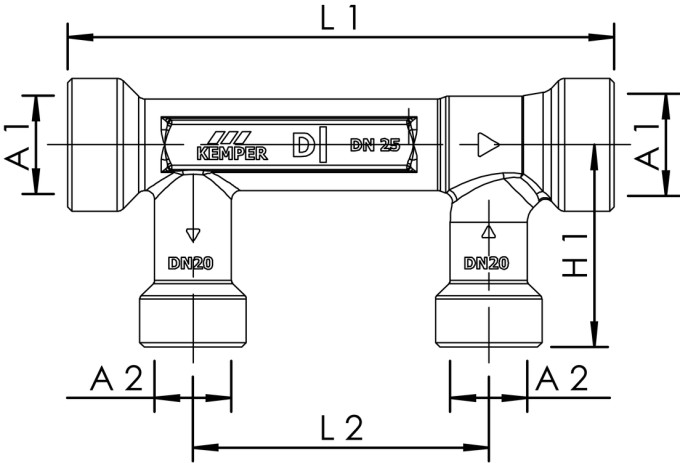

Part no. passage
DN		 Outlets
DN		 A1 A2 H1
(mm)		 H1
(in.)		 L1
(mm)		 L1
(in.)		 L2
(mm)		 L2
(in.)		 Weight
(kg)		 Weight
(lbs)
6512001500 15 15 FPT 1/2 FPT 1/2 48.5 1.9 185 7.3 100 3.9 0.59 0.27
6512002000 20 20 FPT 3/4 FPT 3/4 58.5 2.3 185 7.3 100 3.9 0.81 0.37
6512002500 25 25 FPT 1 FPT 3/4 68.5 2.7 185 7.3 100 3.9 1.03 0.47
6512003200 32 32 FPT 1 1/4 FPT 3/4 73.5 2.9 195 7.7 100 3.9 1.22 0.55
6512004000 40 40 FPT 1 1/2 FPT 1 78.5 3.1 206 8.1 100 3.9 1.76 0.8
6512005000 50 50 FPT 2 FPT 1 88.5 3.5 219 8.6 100 3.9 2.42 1.1
