- pressure rating PN 16
- min. operating temperature 32 °F
- max. operating temperature 221 °F
- Class II power supply only
- length of connection cable 3.3 ft
- wire cross section 4 x 0.22 mm²
- diameter of the sensor 0.2 in
Menu

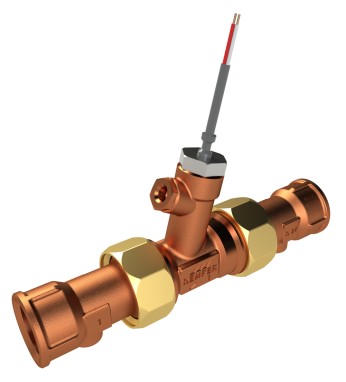

KHS temperature sensor Pt 1000
figure 627 0G
- for connection to the building management system (BMS)
- wetted metal parts made from dezincification-free, corrosion-resistant and lead-free gunmetal, resistant against aggressive water
- including 2-wire Pt1000 temperature sensor
Product Features
- for connection to the building management system (BMS)
- wetted metal parts made from dezincification-free, corrosion-resistant and lead-free gunmetal, resistant against aggressive water
- including 2-wire Pt1000 temperature sensor
- full bore
- female pipe thread
- free from dead spots
Standards & approvals
- NSF/ANSI 61 & NSF/ANSI 372
- IAPMO/IGC 302

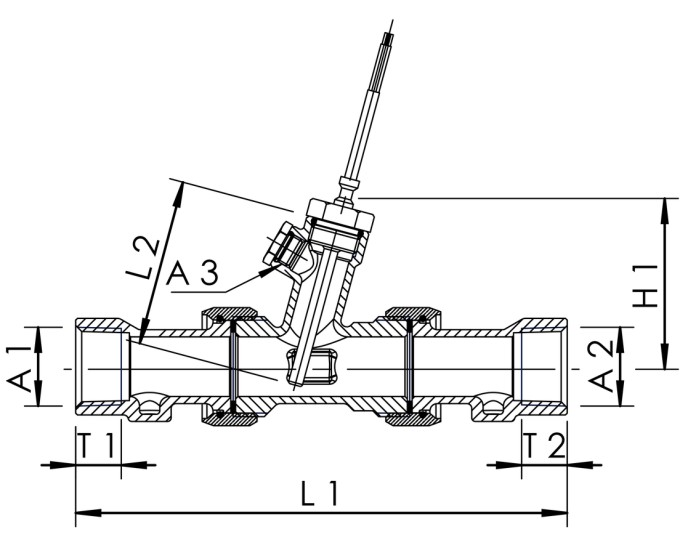

Technical data
| Part no. | DN | A1 | A2 | A3 | H1 (mm) |
H1 (in.) |
L1 (mm) |
L1 (in.) |
L2 (mm) |
L2 (in.) |
T1 (mm) |
T2 (mm) |
Weight (kg) |
Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6270G01500 | 15 | FPT 1/2 | FPT 1/2 | G 1/4 | 65 | 2,6 | 177,4 | 2,6 | 60 | 2,4 | 15 | 15 | 0,38 | 0,17 |
| 6270G02500 | 25 | FPT 1 | FPT 1 | G 1/4 | 70,5 | 2,8 | 204,8 | 2,8 | 70 | 2,8 | 19,1 | 19,1 | 0,61 | 0,28 |
| 6270G03200 | 32 | FPT 1 1/4 | FPT 1 1/4 | G 1/4 | 78 | 3,1 | 217,9 | 3,0 | 80 | 3,1 | 21,4 | 21,4 | 0,66 | 0,3 |
| 6270G05000 | 50 | FPT 2 | FPT 2 | G 1/4 | 88,5 | 3,5 | 253,6 | 3,5 | 80 | 3,1 | 25,7 | 25,7 | 1,04 | 0,47 |
CAD models & characteristic curves
| Part no. | DN | CAD model | Characteristic curve |
|---|---|---|---|
| 6270G01500 | 15 | Show 3D data | Show characteristic curve |
| 6270G02500 | 25 | Show 3D data | Show characteristic curve |
| 6270G03200 | 32 | Show 3D data | Show characteristic curve |
| 6270G05000 | 50 | Show 3D data | Show characteristic curve |
