Accessoires

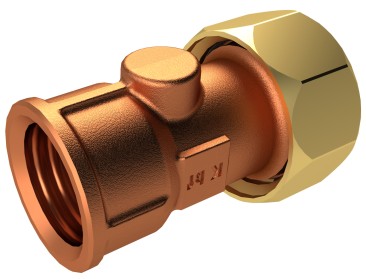

gunmetal union connector, union nut, FPT

figure 475 16

  • wetted metal parts made from dezincification-free, corrosion-resistant and lead-free gunmetal, resistant against aggressive water
  • with coupling nut for flat sealing connection thread including EPDM gasket
/media/crossbase/fot_pro_per_47516_sall_ainfs_v1_lj_366x382.jpg
/media/crossbase/zei_pro_sch_47516_sall_ainfs_v1_lj_366x382.jpg
Site navigation

Product Features

  • wetted metal parts made from dezincification-free, corrosion-resistant and lead-free gunmetal, resistant against aggressive water
  • with coupling nut for flat sealing connection thread including EPDM gasket

Technical data

/media/crossbase/zei_pro_sch_47516_sall_ainfs_v1_lj_404xy.jpg
/media/crossbase/zei_pro_sch_47516_sall_ainfs_v1_lj_680xy.jpg

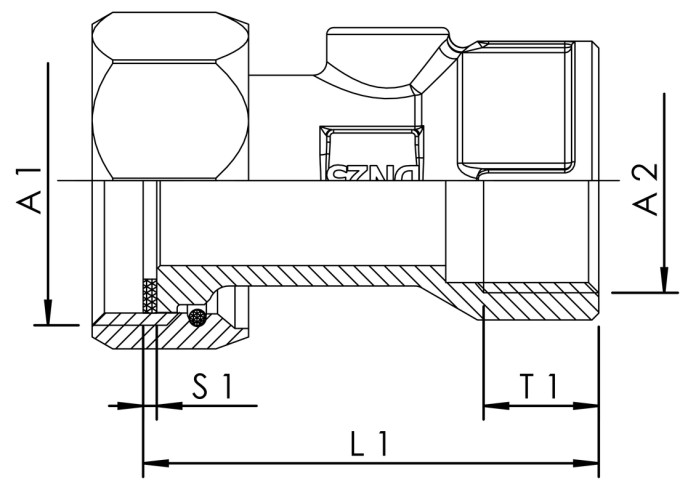

Part no. DN A1 A2 L1
(mm)		 L1
(in.)		 S1
(mm)		 T1
(mm)		 T1
(in.)		 Weight
(kg)		 Weight
(lbs)
4751601500 15 G 3/4 FPT 1/2 57 2.2 2 15 0.6 0.16 0.07
4751602000 20 G 1 FPT 3/4 60 2.4 2 16.3 0.6 0.19 0.09
4751602500 25 G 1 1/4 FPT 1 67 2.6 2 19.1 0.8 0.33 0.15
4751603200 32 G 1 1/2 FPT 1 1/4 71 2.8 2 21.4 0.8 0.43 0.19
4751604000 40 G 1 3/4 FPT 1 1/2 72 2.8 2 21.4 0.8 0.53 0.22
4751605000 50 G 2 3/8 FPT 2 82 3.2 3 25.7 1.0 0.78 0.35
