Stop valves

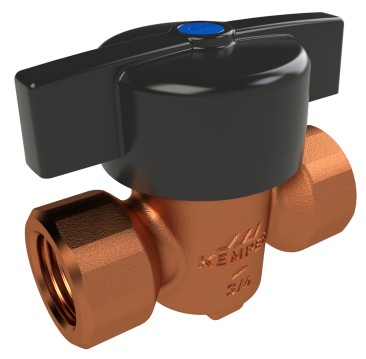

quarter turn stop valve, FPT

figure 389 00

  • low pressure loss
  • wetted metal parts made from dezincification-free, corrosion-resistant and lead-free gunmetal, resistant against aggressive water
  • full bore
Downloads
/media/crossbase/fot_pro_per_38900_sall_ainfs_v1_lj_366x382.jpg
/media/crossbase/zei_pro_sch_38900_sall_ainfs_v1_lj_366x382.jpg
Site navigation

Product Features

  • low pressure loss
  • wetted metal parts made from dezincification-free, corrosion-resistant and lead-free gunmetal, resistant against aggressive water
  • full bore
  • female pipe thread
  • removable inner top part TOP-ENTRY, with EPDM gasket body and gunmetal ball
  • operating handle 90° rotatable
  • free from dead spots

Standards & approvals

  • NSF/ANSI 61 & NSF/ANSI 372
  • IAPMO/IGC 302

Technical data

  • pressure rating PN 16
  • max. operating temperature 194 °F
/media/crossbase/zei_pro_sch_38900_sall_ainfs_v1_lj_404xy.jpg
/media/crossbase/zei_pro_sch_38900_sall_ainfs_v1_lj_680xy.jpg

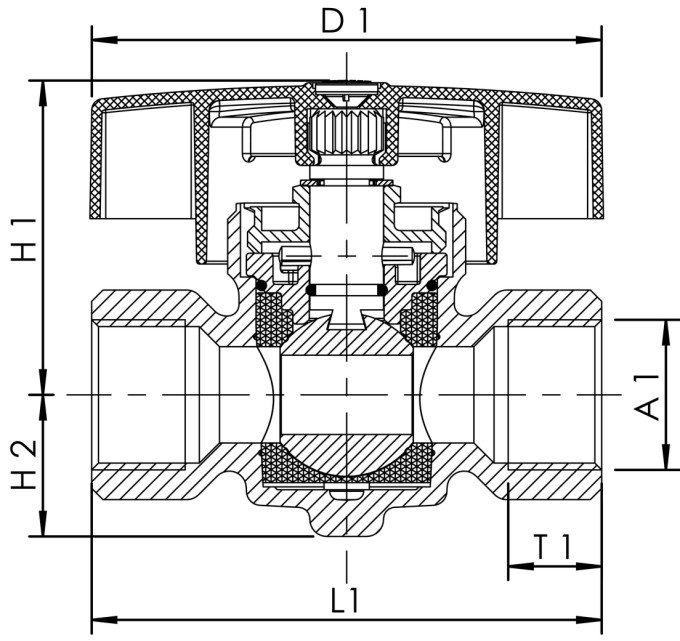

Part no. DN A1 D1
(mm)		 D1
(in.)		 H1
(mm)		 H1
(in.)		 H2
(mm)		 H2
(in.)		 L1
(mm)		 L1
(in.)		 T1
(mm)		 T1
(in.)		 Weight
(kg)		 Weight
(lbs)
3890001500 15 FPT 1/2 90 3,5 55,5 2,2 25 1,0 84 3,3 14,5 0,6 0,50 0,23
3890002000 20 FPT 3/4 90 3,5 55,5 2,2 25 1,0 90 3,5 16,5 0,6 0,58 0,27
3890002500 25 FPT 1 90 3,5 58,5 2,3 28 1,1 99 3,9 18 0,7 0,84 0,38

CAD models

Part no. DN CAD model
3890001500 15 Show 3D data
3890002000 20 Show 3D data
3890002500 25 Show 3D data

Downloads

Data sheet
File type
Product Data Sheet
pdf
Instructions
File type
Installation, Operating, and Safety Instructions
pdf (1.11 MB)
